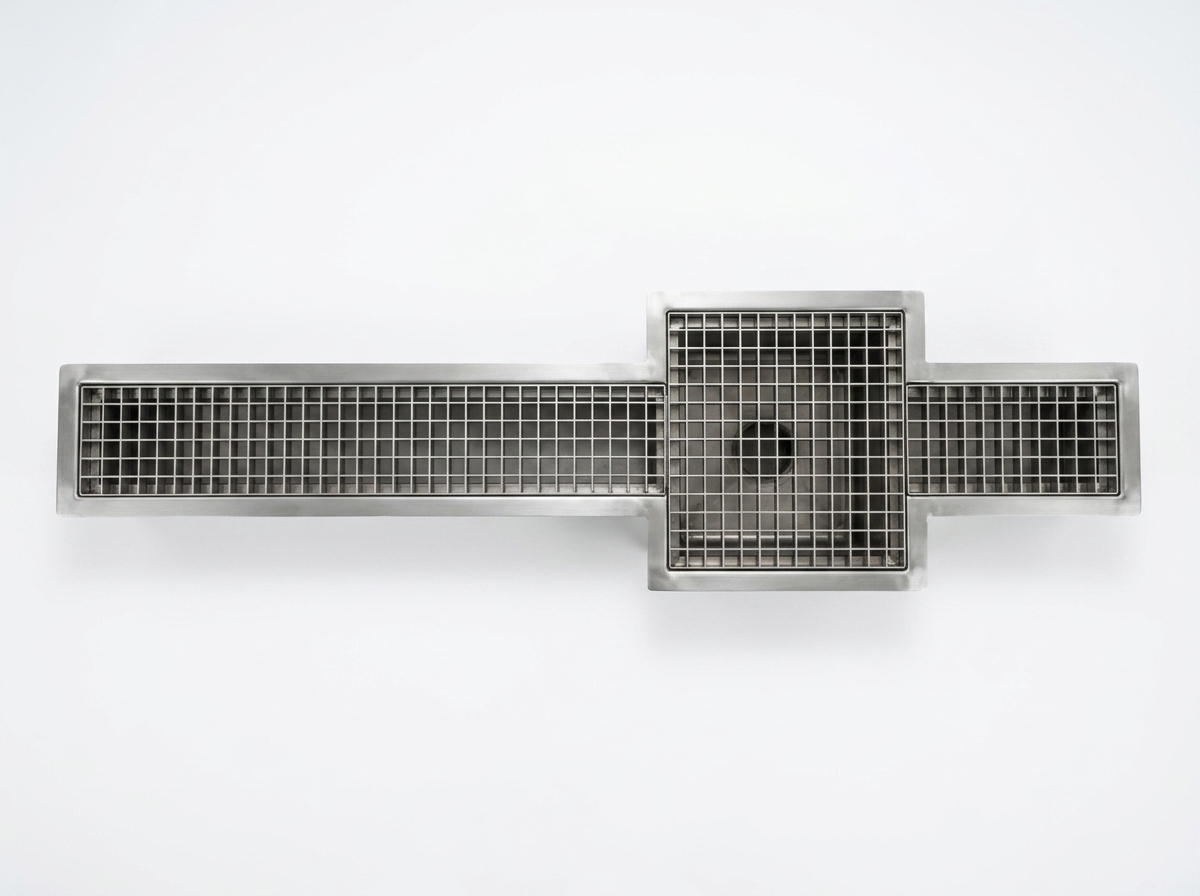

SS 304 Interlocking Box Drain Grating with Drainage Channel

Product Details

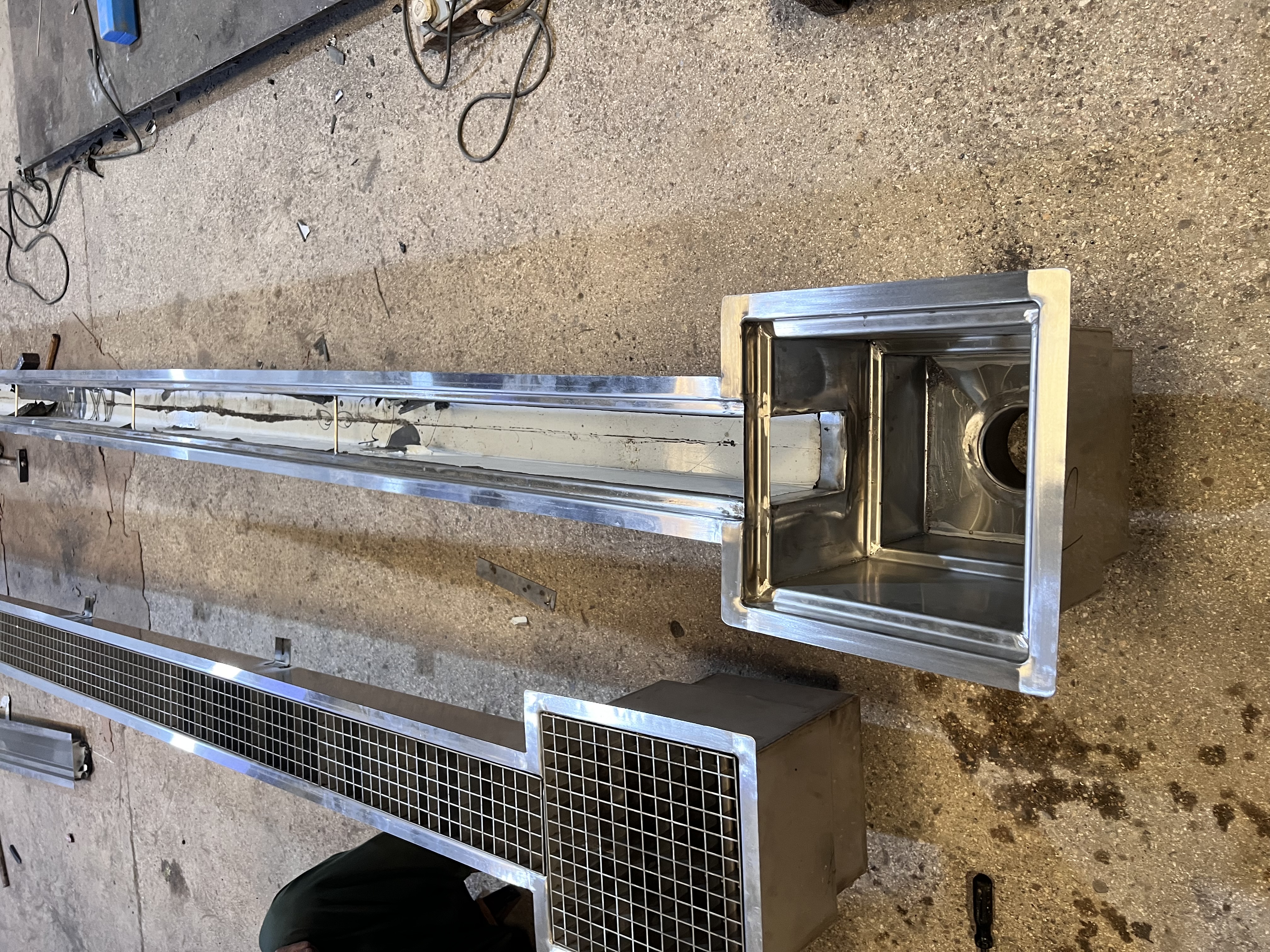

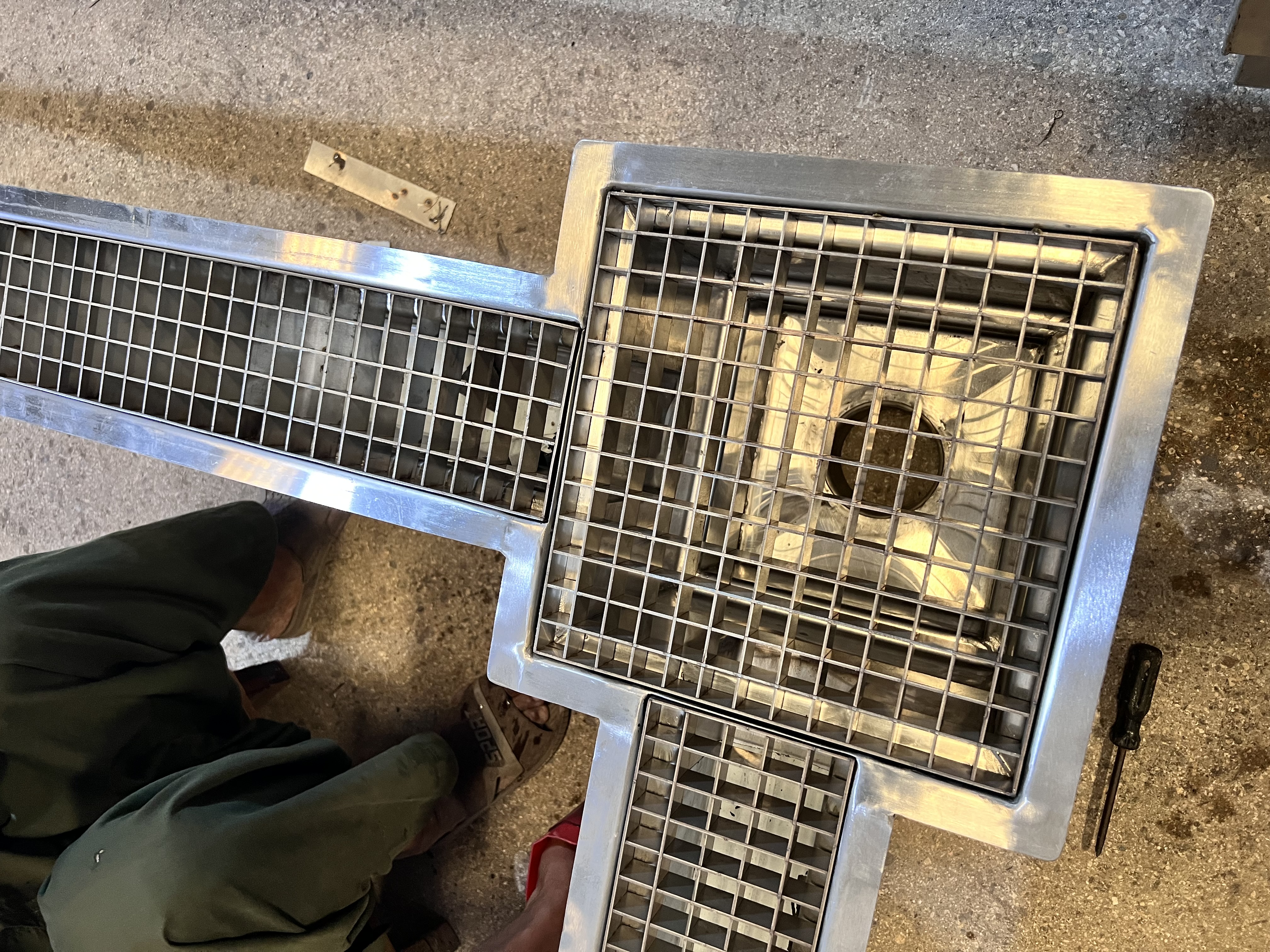

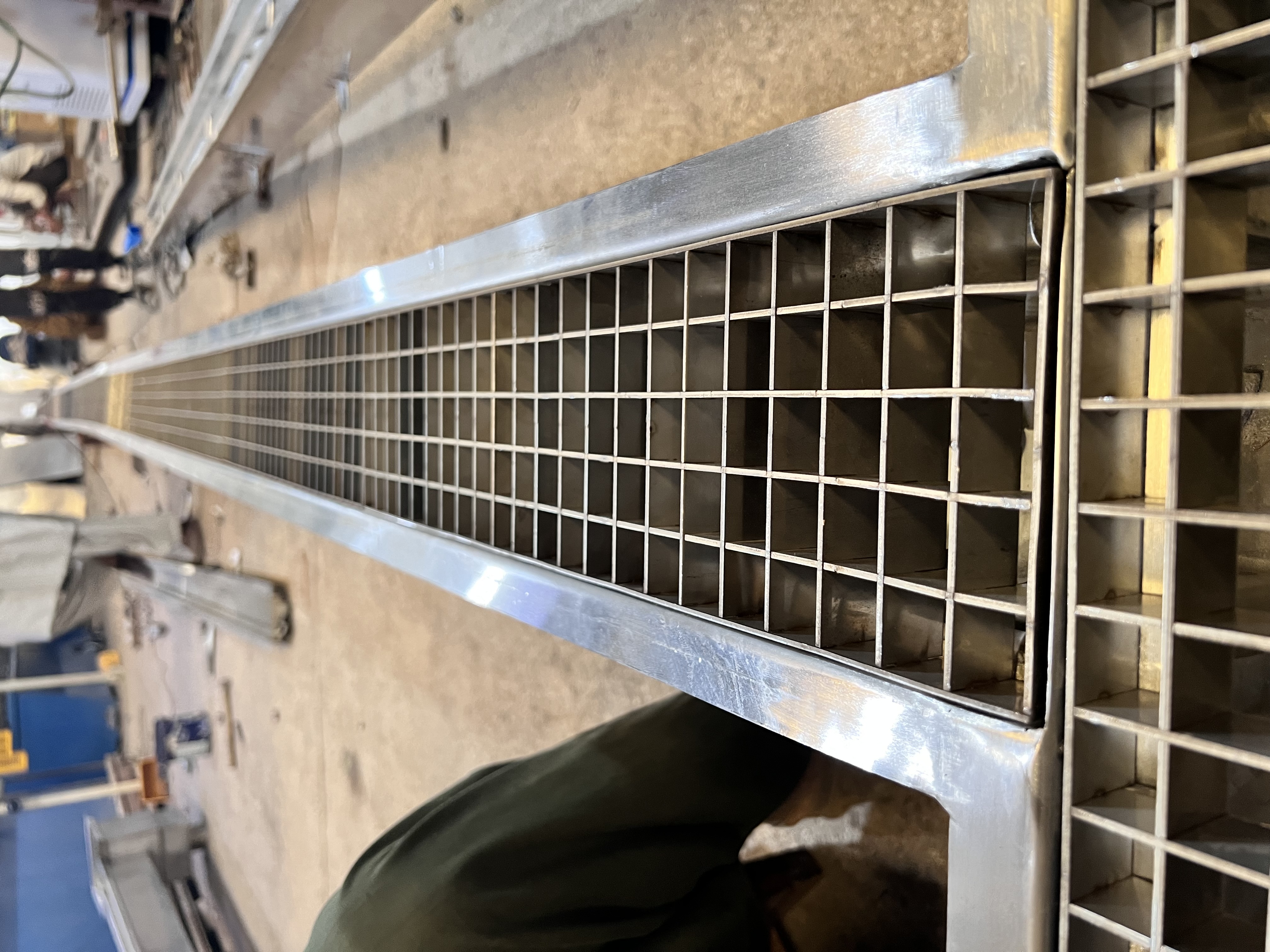

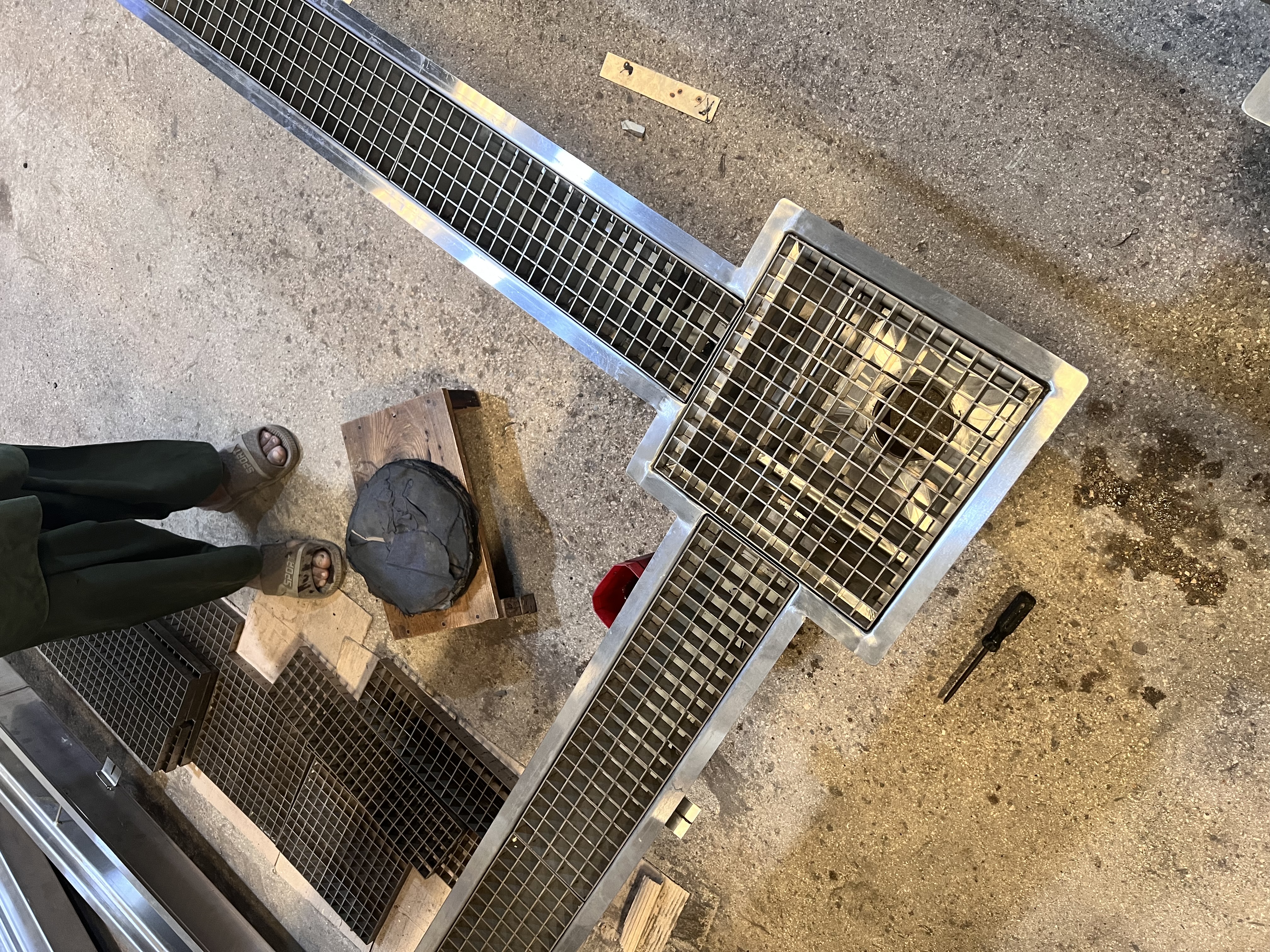

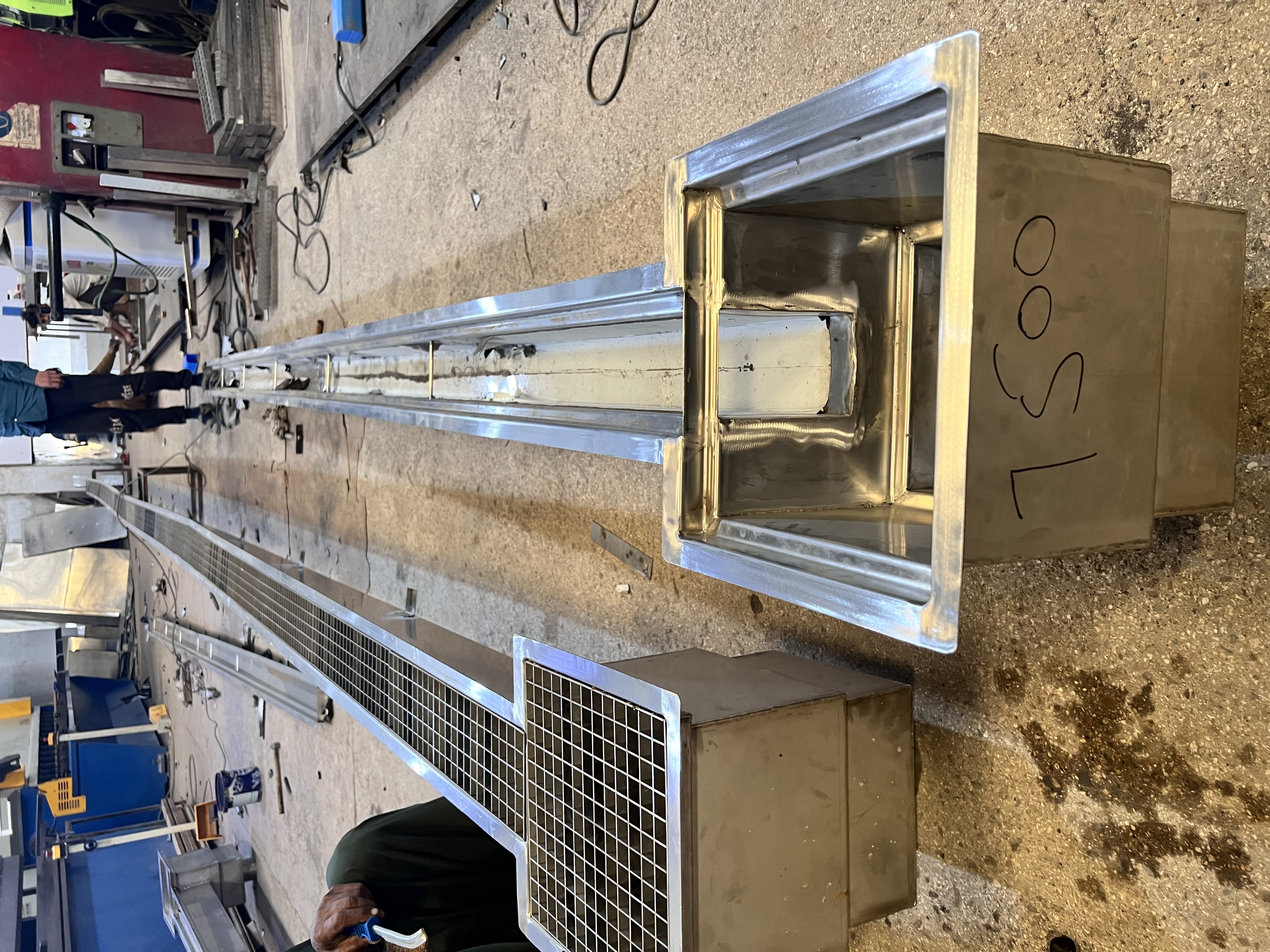

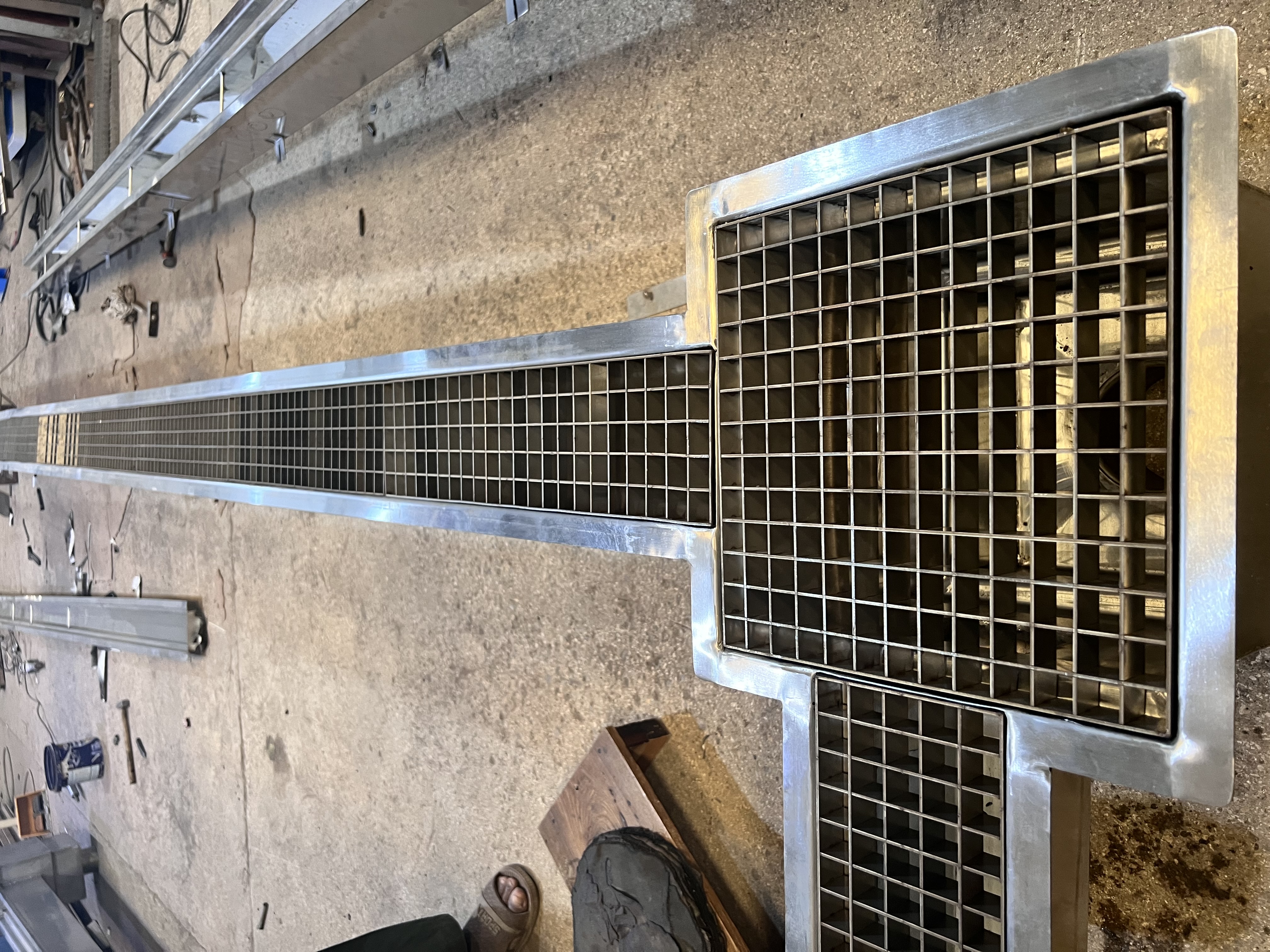

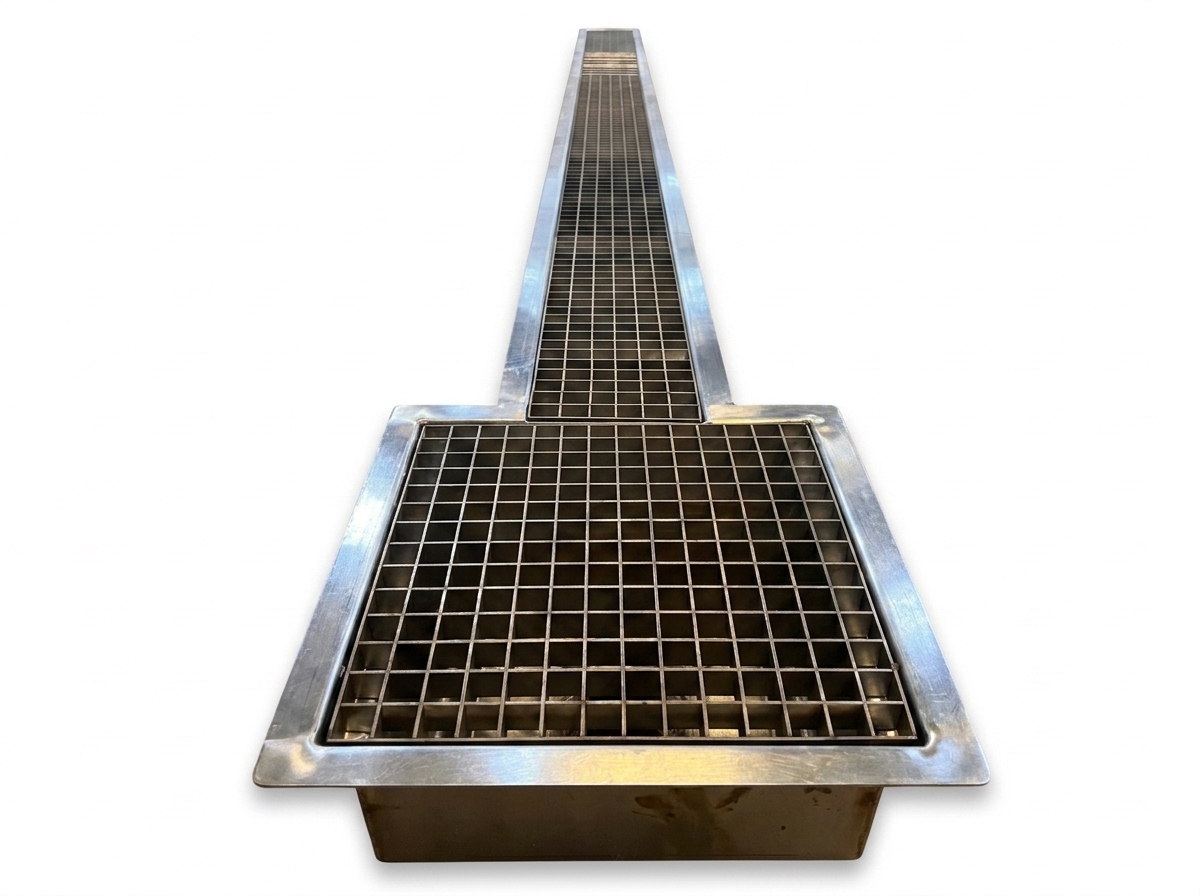

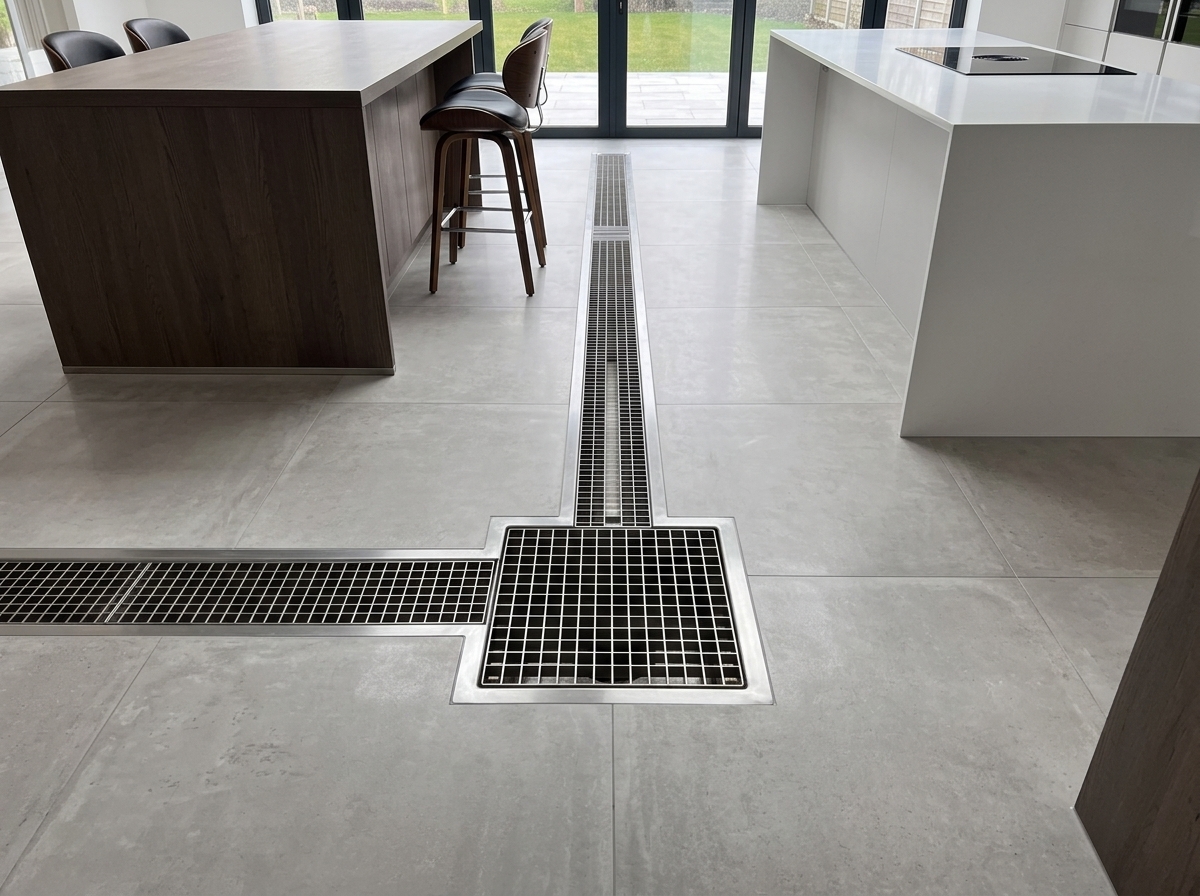

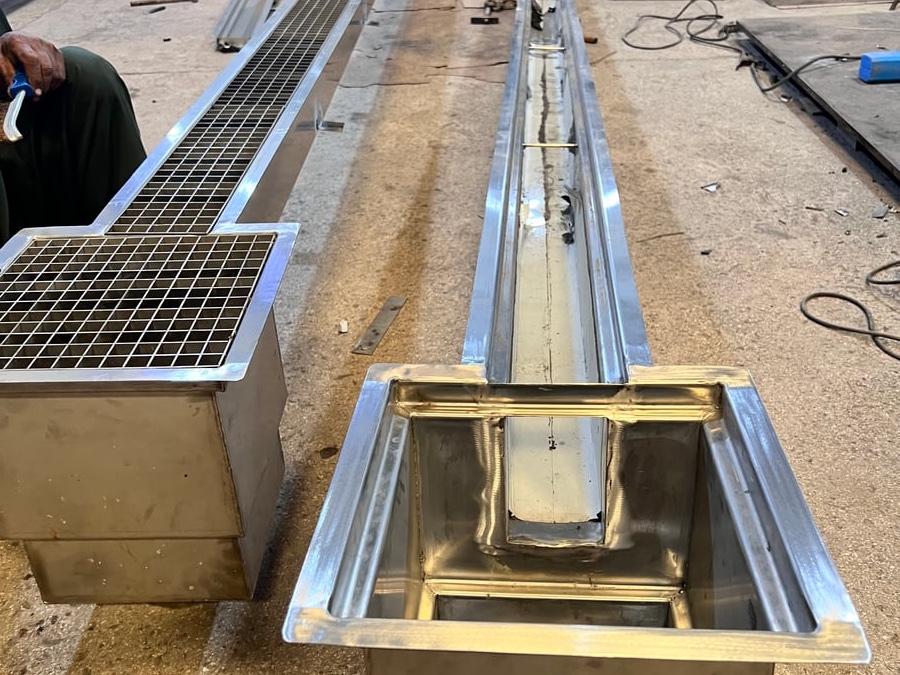

Specification Details Product Type Interlocking Box-Type Floor Drain Grating Material Stainless Steel 304 Grating Strip 1” (25 mm) wide SS 304 strip Strip Thickness 1.5 mm Construction Interlocking strips, mechanically assembled Opening / Spacing 25 mm clear spacing between strips Pattern Square/box-type grid pattern Drain Channel SS 304 channel/tray installed underneath Channel Thickness 1.5 mm Channel Function Collects and directs wastewater below the grating Application Commercial kitchens, hotels, restaurants, food-processing areas, wash areas and industrial drainage Finish Stainless steel smooth finish; brushed/satin finish available Customization Width, length, channel depth and outlet position can be customized SS 304 Interlocking Box Drain Grating is fabricated from 1.5 mm thick SS 304 strips, with 1” (25 mm) wide strips interlocked at 25 mm spacing to create a rigid box/grid-style drainage surface. A 1.5 mm thick SS 304 drainage tray/channel is fitted underneath the grating to collect and carry wastewater to the drain outlet.
